Level Up
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Model Description
Where versatility meets fun. With a lightweight aluminum frame, bump-smoothing 100mm travel fork, and smooth-shifting 8-speed gearing,this rugged hardtail is equally at home on streets and trails.
What it's for
Singletrack exploration, around town cruising, and multi-surface exploration
Highlights
- Light and durable SmartForm C3 Alloy frame
- SR Suntour XCM suspension fork, 100mm travel
- microSHIFT Acolyte 8-speed gearing with trigger-style shifter
- Powerful Tektro mechanical disc brakes
Details
Frameset
-
Frame
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
-
Fork
SR Suntour XCM , coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
-
Headset
Semi-Integrated, 1-1/8"
Drivetrain
-
Rear Derailleur

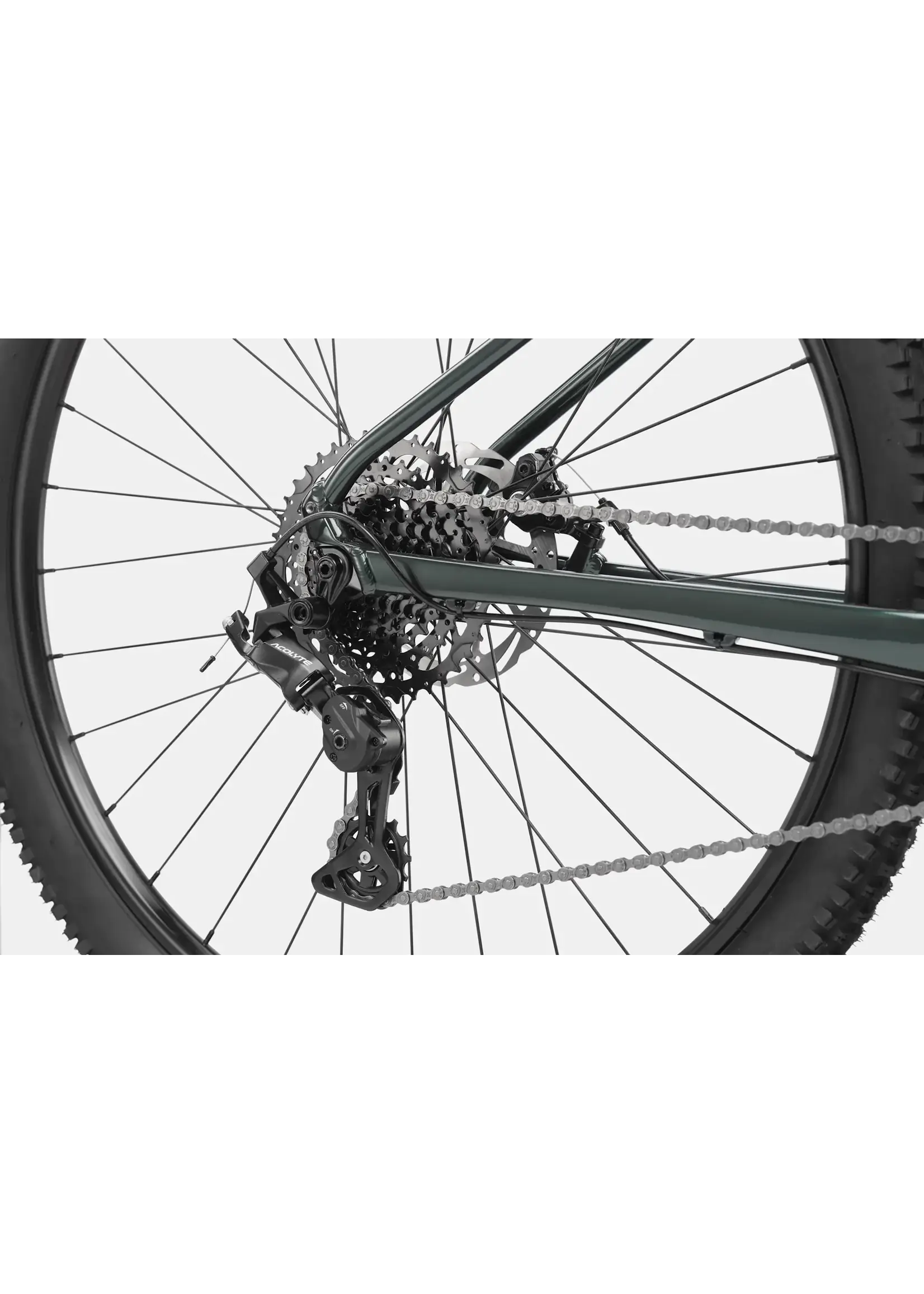

microSHIFT Acolyte, 8-speed
-
Shifters
microSHIFT Acolyte, trigger-style, 8-speed
-
-
Crank
Prowheel, Charm 30T
-
Rear Cogs
microSHIFT, 12-42, 8-speed
-
Bottom Bracket
ProWheel, square taper
Brakes
-
Brakes
Tektro M280 mechanical disc, 160/160mm rotors
-
Brake Levers
Tektro RS360A mechanical disc
Wheels
-
-
Spokes
Stainless Steel, 14g
-
-
-
Hubs
(F) Formula DC-51, 15x100mm / (R) Formula DC-1422, 12x142mm
-
Tires
WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
Components
-
Handlebar
6061 Alloy Riser, 31.8mm, 25mm rise, 700mm
-
Stem
6061 Alloy, 31.8, 8°
-
-
-
Seatpost
6061 Alloy, 31.6x400mm
Please note that, based on component availability and other factors, specifications are subject to change without notice.
